Arch Roof Tents

Home / Types / Arch Roof Tents

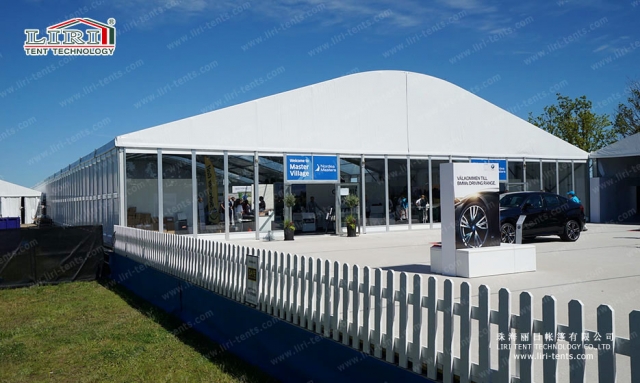

Arch roof tent is an unique tent type, based on the design of A frame tents and absorbing traditional Chinese architectural design elements. Arch roof tents from Liri include widths from 15m to 40m, while its unlimited length can be increased and decreased by 5m bay. High reinforced aluminum alloy (6061/T6) is used for frame of these special design tents. Fire retardant double-side PVC synthetic fabric covers are conform to European DIN4102 B1, M2 standard.

Specification of Arch Roof Tents

Span Width Bay Distance Eave Height Ridge Height Main Profile
15m 5m 3.88m 5.73m 204x120x4mm(4-channel)
20m 5m 3.88m 6.53m 204x120x4mm(4-channel)
25m 5m 3.88m 7.33m 204x120x4mm(4-channel)
15m 5m 3.92m 5.55m 204x120x4mm(4-channel)
20m 5m 3.92m 6.33m 256x121x5mm(4-channel)
25m 5m 3.92m 7.15m 256x121x5mm(4-channel)
30m 5m 3.92m 7.87m 256x121x5mm(4-channel)
You can extend these arch tents by 5m bay such as 15m, 20m, 30m, 40m…Customized sizes and shapes are available.

Optional Accessories for Clearspan Buildings

  • clear PVC window sidewalls
  • ground anchors
  • weight plates
  • decoration roof linings and side curtains
  • glass doors
  • clear roof covers and sidewalls, ABS hard walls
  • flooring system
  • rain gutters

accesosries for arch roof tents
If you are interested in these tents and other more, just SEND your detailed product inquiry below. We will get back to you as soon as possible.
