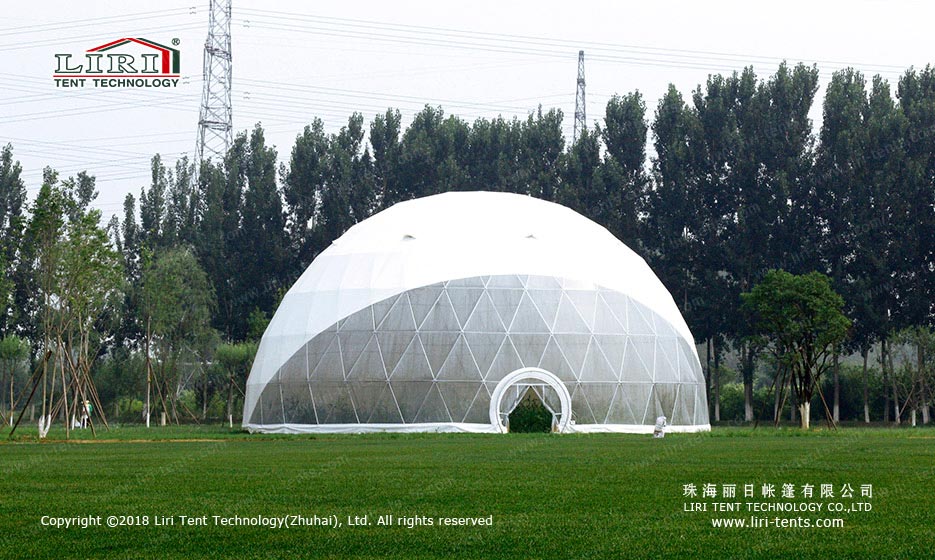

Big Geodesic Dome Tents for Commercial Applications
For large-scale projects, events, or industrial operations, big geodesic dome tents offer a powerful and versatile solution. Unlike conventional structures, these massive domes provide a vast, open interior space ideal for a wide range of commercial applications, from large exhibitions and sports arenas to temporary warehouses.
The unique, latticed design of a geodesic dome distributes stress evenly across its frame, creating an incredibly strong and stable structure. This allows for a massive, clear-span interior without the need for internal columns, providing maximum usable space for equipment, products, or people. This combination of structural integrity and open volume makes them a superior choice for any project that requires both immense scale and reliable performance.
Geodesic Dome Tents Dimensions
| Diameter | Ceiling Height | Floor Area | Volume | Steel framework | Membrane |
|---|---|---|---|---|---|
| 3m | 2.3m | 7.1m² | 10.7m³ | 214kg / 0.7×0.4×0.25m | 19kg / 1.0×1.0x0.1m |
| 4m | 2.38m | 12.6m² | 21.5m³ | 220kg / 0.95×0.4×0.2m | 29kg / 1.0×1.0x0.1m |
| 5m | 2.9m | 19.6m² | 32.7m³ | 338kg / 1.1×0.5×0.3m | 46kg / 1.0×1.0x0.2m |
| 6m | 3m | 28.3m² | 56.5m³ | 460kg / 1.1×0.7×0.6m | 55kg / 1.2×1.0x0.3m |
| 7m | 3.5m | 38.5m² | 90m³ | 526kg / 1.2×0.7×0.6m | 74kg / 1.2×1.0x0.4m |
| 8m | 4m | 50.2m² | 134m³ | 530kg / 1.4×0.7×0.6m | 94kg / 1.3×1.0x0.4m |
| 9m | 4.5m | 63.6m² | 191m³ | 660kg / 1.5×0.7×0.6m | 121kg / 1.5×1.5×0.35m |
| 10m | 5m | 78.5m² | 262m³ | 720kg / 1.7×0.7×0.8m | 150kg / 1.5×1.0x0.35m |
| 11m | 5.5m | 95m² | 348m³ | 780kg / 1.9×0.7×0.9m | 180kg / 1.6×1.1×0.4m |
| 12m | 6m | 113m² | 452m³ | 1240kg / 2.0×0.7×1.0m | 220kg / 1.6×1.2×0.4m |
| 13m | 5.82 | 132.7m² | 545m³ | 1520kg / 1.9×0.8×1.0m | 220kg / 1.6×1.2×0.5m |
| 14m | 6.27m | 153.9m² | 685m³ | 1800kg / 2.0×0.8×1.0m | 264kg / 1.6×1.2×0.5m |
| 15m | 6.72m | 176.6m² | 845m³ | 1910kg / 2.1×0.8×1.0m | 220kg / 1.6×1.2×0.6m |
| 16m | 7.16m | 201m² | 1030m³ | 2020kg / 2.2×0.8×1.0m | 346kg / 1.6×1.2×0.7m |
| 17m | 8.5m | 226.9m² | 1285m³ | 2810kg / 2x（2.0×0.7×0.7）m | 430kg / 2x（1.3×1.0x0.5）m |
| 18m | 9m | 254.3m² | 1525m³ | 2950kg / 3x（2.0×0.6×0.7）m | 480kg / 4x（1.4×0.7×0.5）m |
| 19m | 9.5m | 283.4m² | 1795m³ | 3090kg / 3x（2.0×0.6×0.7）m | 530kg / 4（1.4×0.7×0.5）m |
| 20m | 10m | 314m² | 2090m³ | 3840kg / 4x（2.3×0.7×0.5）m | 595kg / 4x（1.5×0.7×0.6）m |
| 21m | 10.5m | 346.2m² | 2420m³ | 4000kg / 4x（2.4×0.7×0.5）m | 650kg / 4x（1.5×0.7×0.6）m |
| 22m | 11m | 379.9m² | 2785m³ | 4170kg / 4x（2.5×0.7×0.6）m | 715kg / 4x（1.5×0.7×0.7）m |
| 23m | 11.5m | 415.3m² | 3180m³ | 3460kg / 4x（2.6×0.7×0.5）m | 780kg / 4x（1.5×0.6×0.7）m |
| 24m | 12m | 452.2m² | 3615m³ | 4510kg / 5x（2.7×0.6×0.6）m | 850kg / 4x（1.5×0.8×0.8）m |
| 25m | 12.5m | 490.6m² | 4090m³ | 7000kg / 8x（3.0×0.6×0.4）m | 925kg / 5x（1.5×0.7×0.7）m |
| 30m | 13m | 706.5m² | 5744m³ | 8970kg / 8x（3.2×0.6×0.6）m | 1320kg / 6x（1.3×0.6×0.7）m |
| 35m | 14m | 961m² | 8170m³ | 10400kg / 3x（3.3×1.0x1.0）m | 1475kg / 6x（1.3×0.8×0.8）m |
| 40m | 15m | 1256m² | 11191m³ | 11820kg / 8x（3.5×1.0x1.0）m | 1840kg / 6x（1.3×0.9×0.9）m |
| 45m | 18m | 1589.6m² | 17367m³ | 17000kg / 6x（2.9×1.0x1.0）m | 2250kg / 6x（1.3×1.0x1.0）m |
| 50m | 20m | 1962.5m² | 23823m³ | 28000kg / 13x（2.5×1.0x1.0）m | 2770kg / 8x（1.3×1.0x1.0）m |
| 55m | 22m | 2374.6m² | 21710m³ | 38000kg / 18x（2.3×1.0x1.0）m | 3600kg / 8x（1.3×1.0x1.0）m |
| 60m | 25m | 2826.0m² | 43524m³ | 48000kg / 26x（2.2×1.0x1.0）m | 4200kg / 8x（1.3×1.0x1.0）m |
Key Structural and Material Specifications
When choosing a large geodesic dome tent, it’s essential to understand the core components engineered for durability and longevity.
- Frame Material: The frame is typically constructed from either galvanized steel or aluminum alloy. Galvanized steel offers exceptional strength, making it a robust choice for long-term installations. Aluminum alloy is lighter and corrosion-resistant, which facilitates a faster, more efficient installation process.
- Fabric Coverings: The outer membrane is a critical element, most often a heavy-duty PVC/PVDF-coated fabric. These materials are specifically chosen for their high tensile strength, resistance to UV degradation, and exceptional waterproofing, designed to protect contents from harsh weather.
- Load Ratings: For large-scale applications, understanding the tent’s wind load and snow load ratings is crucial. These ratings indicate the tent’s ability to withstand extreme weather, a key factor in ensuring safety and longevity.
Ready to see how a large geodesic dome tent can provide a robust and versatile solution for your next project? Submit your project details for a curated solution that matches your needs.
Need a Custom Party Tent Solution?
Get a free quote and engineering consultation from our team.
Frequently Asked Questions
What size options are available for this tent?
Big Geodesic Dome Tents come in various sizes depending on your event needs. Common configurations range from 10m x 10m up to 30m x 60m for large-scale events. Custom dimensions can be engineered to fit your specific venue requirements. Our team can help determine the optimal size based on your guest count and layout.
What is a geodesic dome tent?
A geodesic dome tent is a versatile temporary structure designed for outdoor events, commercial applications, and special occasions. It provides weather protection, clear-span interior space, and can be customized with side walls, lighting, flooring, and climate control systems to suit any event or business need.
How long does a geodesic dome tent last?
With proper maintenance, a commercial-grade geodesic dome tent can last 8-15 years. The aluminum frame is corrosion-resistant and the PVC fabric cover typically needs replacement every 5-8 years depending on sun exposure and weather conditions. Regular inspection and proper storage extend the lifespan significantly.
What is the maximum wind resistance of this dome tent?
Our geodesic dome tents are engineered to withstand wind speeds up to 100-120 km/h (62-75 mph) when properly anchored. The triangular frame geometry distributes wind loads efficiently across the structure, making domes one of the most wind-resistant tent designs available.
How long does it take to set up a large tent structure?
Setup time depends on the size and complexity. A standard structure can be installed by a professional crew of 4-6 people in 1-3 days, depending on site conditions and whether foundation work is required. Our team provides detailed installation manuals and on-site supervision for complex projects.
