Geodesic dome tent for yoga

You can’t imagine how passionate yoga lovers are about outdoor training. To be close to nature and feel it, they go out of their way to build a dome tent for yoga training. Cycle after cycle of classes, wave after wave of enthusiasts train and live here.

Outdoor yoga enthusiast

When you walk into this geodesic dome tent for yoga, the translucent windows offer a view of the outdoor environment, and the white top shades you from the sun. It allows you to feel nature and feel like you are at home at the same time. An excellent tent that insulates you from all harmful elements and also gives you a quiet environment.

With this yoga dome tent for sale, you will have enough space to sleep, train, feel nature and live in comfort. This yoga dome tent is available in sizes from 3m to 60m and can be set up to suit your type and location. Now you just have to look at that outdoor environment and we’ll go there.

Geodesic dome tent for party event

Geodesic Dome Tent Series Specifications

DiameterCeiling HeightFloor AreaVolumeSteel frameworkMembrane
3m2.3m
7.1m²10.7m³214kg / 0.7x0.4x0.25m19kg / 1.0x1.0x0.1m
4m2.38m12.6m²21.5m³220kg / 0.95x0.4x0.2m29kg / 1.0x1.0x0.1m
5m2.9m19.6m²32.7m³338kg / 1.1x0.5x0.3m46kg / 1.0x1.0x0.2m
6m3m28.3m²56.5m³460kg / 1.1x0.7x0.6m55kg / 1.2x1.0x0.3m
7m3.5m38.5m²90m³526kg / 1.2x0.7x0.6m74kg / 1.2x1.0x0.4m
8m4m50.2m²134m³530kg / 1.4x0.7x0.6m94kg / 1.3x1.0x0.4m
9m4.5m63.6m²191m³660kg / 1.5x0.7x0.6m121kg / 1.5x1.5x0.35m
10m5m78.5m²262m³720kg / 1.7x0.7x0.8m150kg / 1.5x1.0x0.35m
11m5.5m95m²348m³780kg / 1.9x0.7x0.9m180kg / 1.6x1.1x0.4m
12m6m113m²452m³1240kg / 2.0x0.7x1.0m220kg / 1.6x1.2x0.4m
13m5.82132.7m²545m³1520kg / 1.9x0.8x1.0m220kg / 1.6x1.2x0.5m
14m6.27m153.9m²685m³1800kg / 2.0x0.8x1.0m264kg / 1.6x1.2x0.5m
15m
6.72m176.6m²845m³1910kg / 2.1x0.8x1.0m220kg / 1.6x1.2x0.6m
16m7.16m201m²1030m³2020kg / 2.2x0.8x1.0m346kg / 1.6x1.2x0.7m
17m8.5m226.9m²1285m³2810kg / 2x(2.0x0.7x0.7)m430kg / 2x(1.3x1.0x0.5)m
18m9m254.3m²1525m³2950kg / 3x(2.0x0.6x0.7)m480kg / 4x(1.4x0.7x0.5)m
19m9.5m283.4m²1795m³3090kg / 3x(2.0x0.6x0.7)m530kg / 4(1.4x0.7x0.5)m
20m10m314m²2090m³3840kg / 4x(2.3x0.7x0.5)m595kg / 4x(1.5x0.7x0.6)m
21m10.5m346.2m²2420m³4000kg / 4x(2.4x0.7x0.5)m650kg / 4x(1.5x0.7x0.6)m
22m
11m379.9m²2785m³4170kg / 4x(2.5x0.7x0.6)m715kg / 4x(1.5x0.7x0.7)m
23m11.5m415.3m²3180m³3460kg / 4x(2.6x0.7x0.5)m780kg / 4x(1.5x0.6x0.7)m
24m12m452.2m²3615m³4510kg / 5x(2.7x0.6x0.6)m850kg / 4x(1.5x0.8x0.8)m
25m12.5m490.6m²4090m³7000kg / 8x(3.0x0.6x0.4)m925kg / 5x(1.5x0.7x0.7)m
30m13m706.5m²5744m³8970kg / 8x(3.2x0.6x0.6)m
1320kg / 6x(1.3x0.6x0.7)m
35m14m961m²8170m³10400kg / 3x(3.3x1.0x1.0)m1475kg / 6x(1.3x0.8x0.8)m
40m15m1256m²11191m³11820kg / 8x(3.5x1.0x1.0)m1840kg / 6x(1.3x0.9x0.9)m
45m18m1589.6m²17367m³17000kg / 6x(2.9x1.0x1.0)m2250kg / 6x(1.3x1.0x1.0)m
50m20m1962.5m²
23823m³28000kg / 13x(2.5x1.0x1.0)m2770kg / 8x(1.3x1.0x1.0)m
55m22m2374.6m²21710m³38000kg / 18x(2.3x1.0x1.0)m3600kg / 8x(1.3x1.0x1.0)m
60m25m2826.0m²43524m³48000kg / 26x(2.2x1.0x1.0)m4200kg / 8x(1.3x1.0x1.0)m

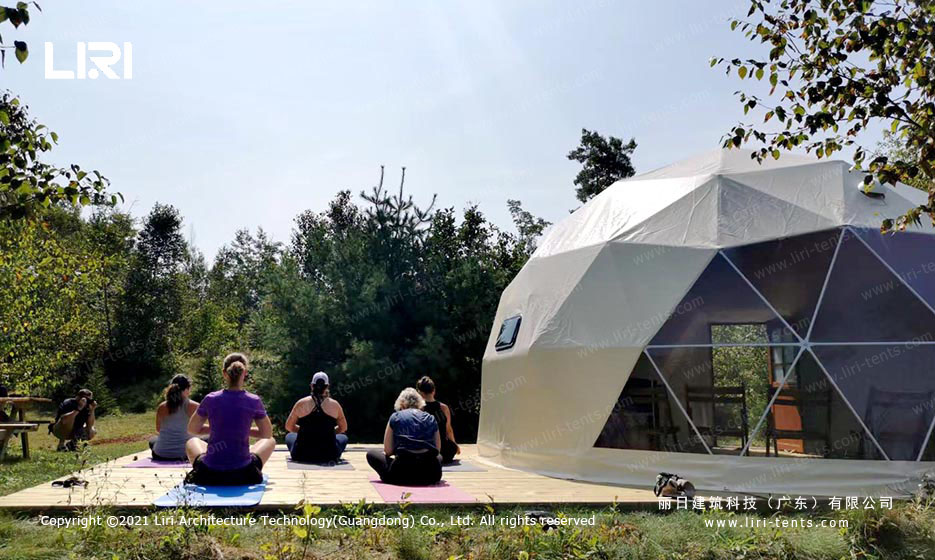

Outdoor Geodesic dome tent

Geodesic Dome Tent Series Features

  • Frame struts: steel Q235 (hot-dip galvanized).
  • Fabric cover: high-quality double PVC-coated polyester textile; 100% waterproof; flame retardant to DIN4102 B1, M2, CFM; UV resistant, tear-resistant, self-cleaning ability, etc.
  • Connector: strong hot-dip galvanized steel.
  • Allowed temperature condition: -30 degrees Celsius +70 degrees Celsius.
  • Wind load: max. 100km/h.
  • Snow load: 75kg/sqm (snow can’t stay if use big degree roof pitch design).
  • Easy to assemble and disassemble.
  • No pole inside, 100% available interior space.
