Temporary Stadium Hospitality & Catering Tent Solutions

In the high-stakes environment of international sports tournaments, existing stadium infrastructure often falls short of the sudden surge in demand for Event Catering, Administrative Command, and Logistics Support.

Utilizing 6061-T6 High-strength Extruded Aluminum Frames and 850g/㎡ Flame Retardant PVC Fabric, these modular building clusters offer a rapid 48-72 hour delivery cycle.

The solution provides a tiered spatial configuration, ranging from massive Athlete Dining Halls to individual Sponsorship Retail Booths.

---

Core Catering Hub: A-Frame Clear Span Marquee System

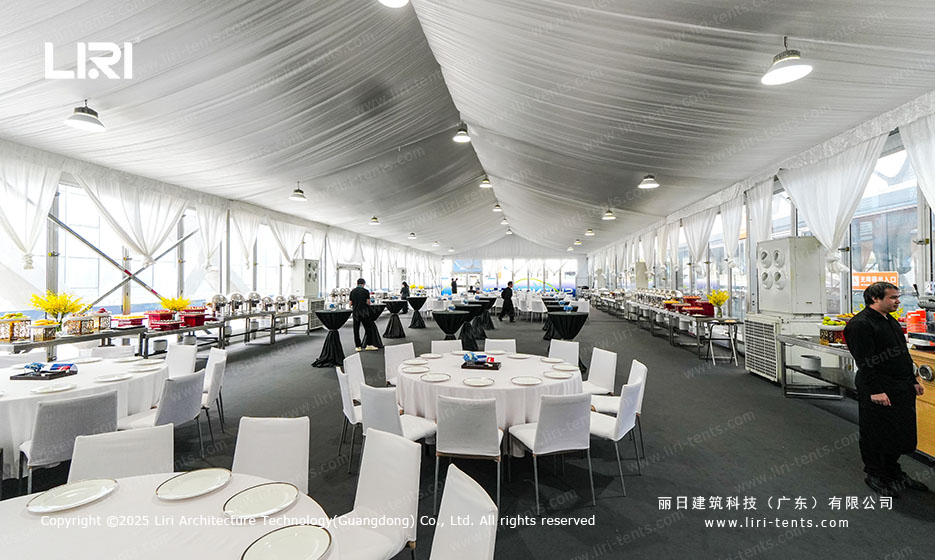

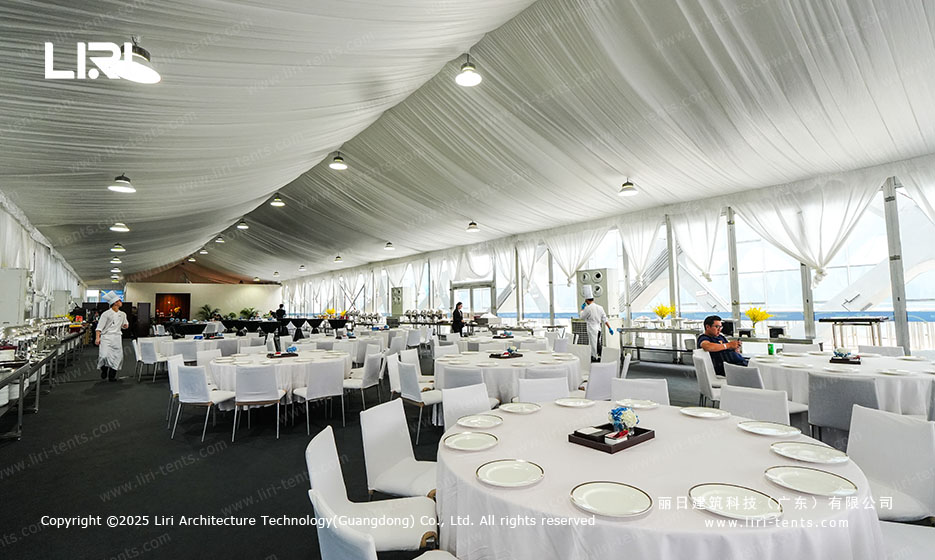

As illustrated in Photos 04 and 05, the Temporary Dining Halls for officials and VIPs utilize A-Frame Clear Span Structures with widths typically ranging from 10m to 30m.

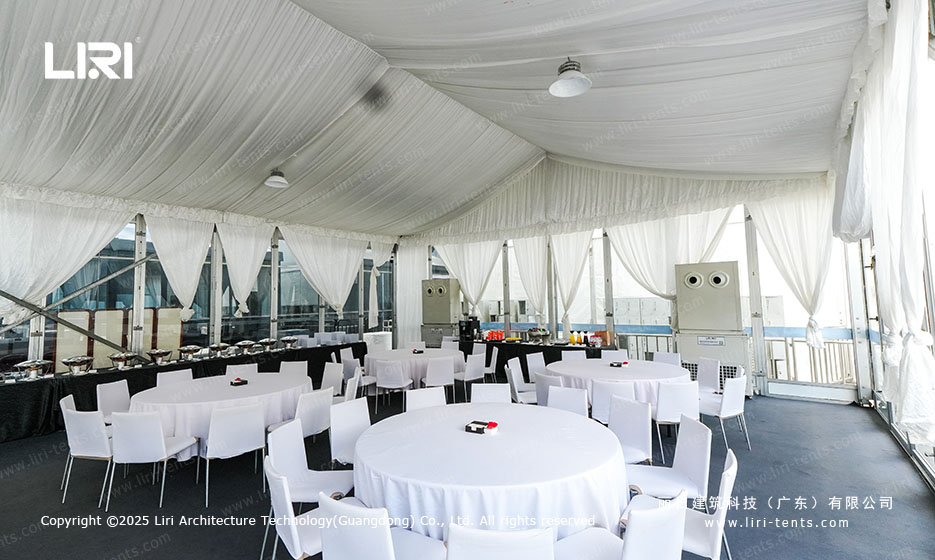

• Obstacle-free Interior: The absence of center poles ensures an absolute flow of movement. This allows for flexible floor plans, accommodating both round-table seating (Photo 04) and buffet lines (Photo 05), maximizing Space Efficiency per square meter.

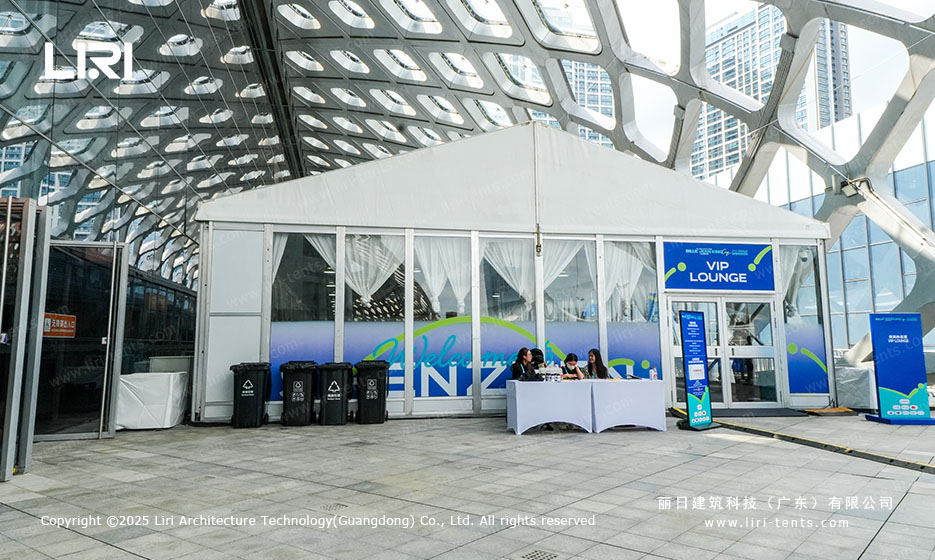

• Premium Facade Options: For high-level executive requirements, standard PVC sidewalls can be upgraded to a Tempered Glass Wall System (Photo 08). This provides superior acoustic insulation while enhancing visual connectivity with the stadium.

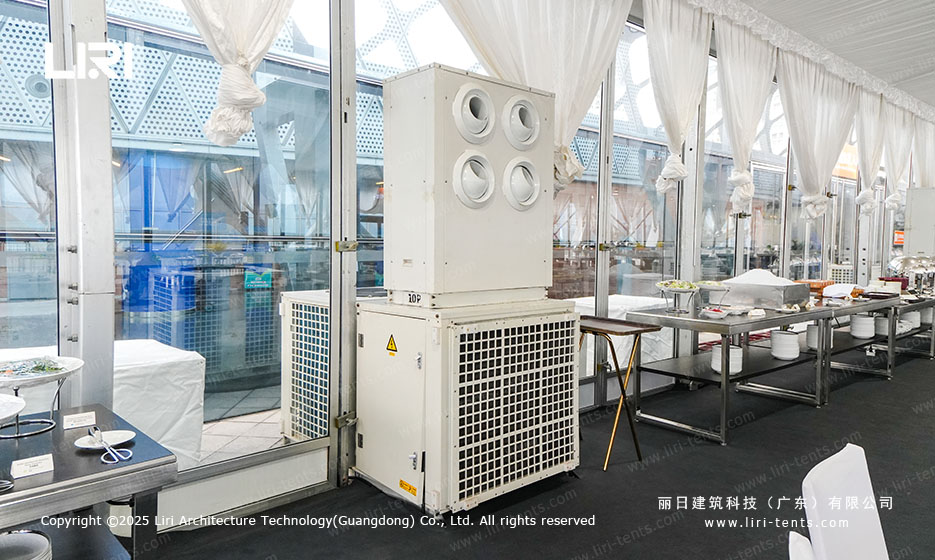

• Integrated HVAC & Aesthetics: Pleated Roof Linings are used to conceal the industrial aluminum skeleton, adding a touch of elegance. Simultaneously, 10HP Industrial AC Units (Photo 03) are deployed to maintain a constant indoor temperature, regardless of external humidity or heat.

---

Retail & Support: High Peak Pagoda Tent Arrays

Surrounding the main dining hall, tournaments require numerous dispersed spaces for Merchandise Stores, Security Checkpoints, and First Aid Stations.

• Standardized Modular Units: Typically 3x3m, 4x4m, or 5x5m Pagoda Tents. Their iconic high-peak design serves as a functional Wayfinding landmark while the steep roof pitch ensures rapid rainwater runoff during inclement weather.

• Rapid Deployment & Turnaround: The pagoda units utilize a simplified click-in system, allowing a single unit to be erected in under 30 minutes, drastically shortening the pre-event setup window.

---

Multi-Functional Spatial Expansion: Long-tail Scenarios

Beyond the standard A-frame and Pagoda, mature event tent solutions include:

• Arcum Tents: The curved roofline integrates seamlessly with modern stadium architecture (like the geodesic structures in the background), often used for Official Media Centers.

• Rain Gutter Walkways: PVC guttering systems allow different tent modules to be interconnected, creating weather-protected corridors for spectators.

---

Technical Trade-offs in Event Execution

Feature Configuration	Pros (Advantages)	Cons & Alternatives
Weight Plate Fixing System	No drilling required; protects expensive stone or marble stadium flooring (Photo 09).	Higher logistics costs; for soft turf, Steel Pegs are recommended to save on transport.
Blackout PVC Covers	Blocks 100% of UV rays and reduces AC energy consumption by over 20%.	Requires 24/7 internal lighting; for natural light, opt for Clear Landscape Windows.
6061-T6 Aluminum Alloy	Lightweight with high structural integrity; wind load up to 100km/h.	Higher initial cost than steel, but offers superior ROI through durability and safety.

---

FAQ

1. How do you ensure the stability of large tents on hard ground where drilling is prohibited?

For stadium plazas and paved surfaces, we implement a Weight Plate Fixing System. Massive cast iron or concrete blocks are loaded onto the column base plates and concealed with Decorative White Covers (Photos 01/02). This ensures the structure remains wind-resistant up to Force 10 (100km/h) without damaging the site’s permanent flooring.

2. What are the wind load ratings and fire safety standards for these aluminum structures?

All grade Event Tents are engineered with 6061-T6 industrial-grade aluminum. The standard wind load rating is 80-100km/h. The PVC fabric meets international B1/M2 Flame Retardancy standards and features specialized UV and anti-mildew coatings for long-term outdoor exposure.

3. Can these temporary dining halls handle uneven terrain inside the stadium perimeter?

Yes. We provide integrated Cassette Flooring Systems or Scaffolding Platforms. These systems level out uneven turf or slopes while creating a moisture-proof barrier between the ground and the tent interior, significantly enhancing the premium feel of the event.
